NEON Vibration Sensor

Condition-based monitoring for Industry 4.0 assets

In many industrial sites there are a variety of assets being used regularly, without clear and timely information about their health status. The future of asset performance management is changing. It is becoming ever more digitised, with data collected from Industrial IoT sensors providing insight and knowledge.

The NEON Vibration Sensor sends alerts to maintenance engineers, as soon as assets, such as engines, conveyor belts, and pumps start to fail. This sets of a trigger when there is a change of frequency in the vibration or when outliers in the data occur. An engineer is alerted to check on this asset to prevent it from failure or long-term damage, which saves costs and ensures operational uptime. Now, assets which are not under constant supervision from operators can be monitored around the clock.

The sensor uses locally run and over the air configurable, algorithms that keep real time checks on their asset. These algorithms are trained to find changes in the vibration fingerprint of the rotating equipment they will be mounted on. All in the reliable NEON form factor that comes as a battery powered, IECEx Class 1 / ATEX Zone 1 certified I-IoT device, communicating wirelessly via LoRaWAN.

1 IS Class I Div 1, Group C,D T4 – AEx ia IIB T4 Gb // II 2G Ex ia IIB T4 Gb

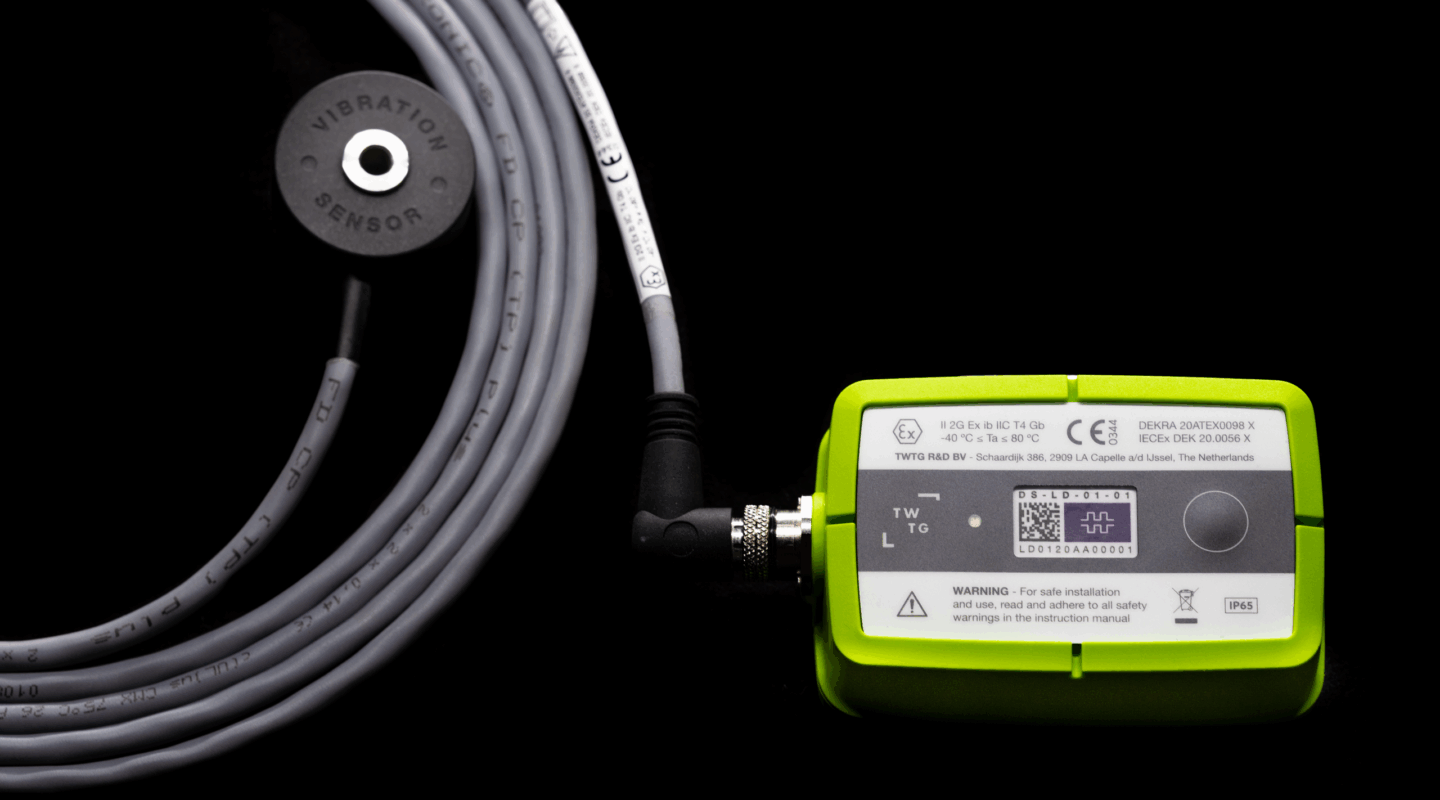

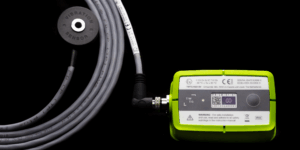

Square NEON Vibration Sensor can be used on various industrial assets
NEON Vibration Sensor can be used on various industrial assets

IECEx Class 1 / ATEX Zone 1 certified

Designed for industry from the very beginning, TWTG’s NEON product line is built to not only operate in industrial sites where explosive gasses are being handled but also all other elements that a sensor may be exposed to in the course of its 10 year lifetime. It has been tested and certified to work in conditions from -40° to 80° Celsius without hampering performance. The devices are designed and engineered in such a way that they can be safely and securely deployed in a wireless network and are fully remotely configurable, ensuring not only longevity but also reliability within an operation.

Additionally, TWTG delivers spare parts and product lifecycle support. Hence, even at the end of the battery lifetime, the sensor can continue to be used with the correct refurbishment kit. This way, periodical maintenance can be kept at a minimum.

NEON Vibration Sensor can be installed / mounted using various methods ranging from  magnets (optional), mounting holes or M6 thread.

Data will tell once an asset starts to run incongruously.

NEON Product Line - LoRa devices designed for heavy industry

The TWTG NEON product range supports all industrial customers moving towards LoRaWAN as the Industrial IoT network of the future. The LoRaWAN network gives industrial operations a secure solution, which has no vendor lock-in, scales up to tens of thousands of sensors, covers complete sites with only a small amount of gateways and best of all – the low-power approach means that the lifetime of the NEON products can be extended dramatically. This international networking technology is quickly becoming the industry standard.

NEON stands for a standardised approach to collecting data points from within the operation and a general approach to creating integrated solutions with existing IT ecosystems.

• Fully LoRaWAN compatible
• Based on the highest security standards
• 100% ownership of data
• Delivered with unique provisioning keys
• Deployment via the SolidRed Provisioning App
• IECEx zone 1 / ATEX zone 1 certified
• Battery powered for easy deployment
• Installation within live environments – continuous operation
• Integration with existing data backends or DCS
• Visualisation via TWTG’s SolidRed Suite or any other IoT platform
• Detailed and extensive documentation
• No legacy; compatible with all types of different assets
• Provision of Lifecycle Support
• Availability of spare parts and refurbishment packages

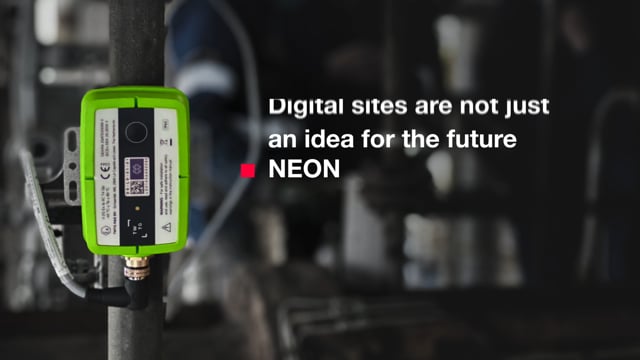

NEON products at Vopak (case-study) Watch video
NEON products at Vopak (case-study)

Technical overview - NEON Vibration Sensor

Sensor
Measures vibration frequency

Range
Linear acceleration:
±2/±4/±8/±16 g full scale

Angular rate sensitivity:
±125/±250/±500/±1000/±2000 dps full scale

Linear acceleration sensitivity:
0.061mg/LSB (3)

Angular rate sensitivity:
4.375 mdps/LSB3

Wireless protocols
LoRaWAN 868, 915 MHz (2)

Square
0.061 mg/LSB - Linear accelaration sensitivity (lowest range setting)
Square
4.375 mdps/LSB - Angular rate sensitivity (lowest range setting)

Dimensions
99 x 65 x 39 mm (L x W x H)

Operating temperature
-40°C to 80°C (-40°F to 176°F)

Certifications
IECEx Class 1 / ATEX Zone 1, IP-65 rated (1)

Lifetime
10 years, up to 5 years battery life

Mounting
Magnet, M6 thread, mounting holes

(1) IS Class I Div 1, Group C,D T4 – AEx ia IIB T4 Gb
II 2G Ex ia IIB T4 Gb – certification pending

(2) Compatible with international LoRaWAN standards (long-range, low power wide-area network)

(3) At lowest range setting
