NEON Temperature Sensor
Industrial IoT solutions

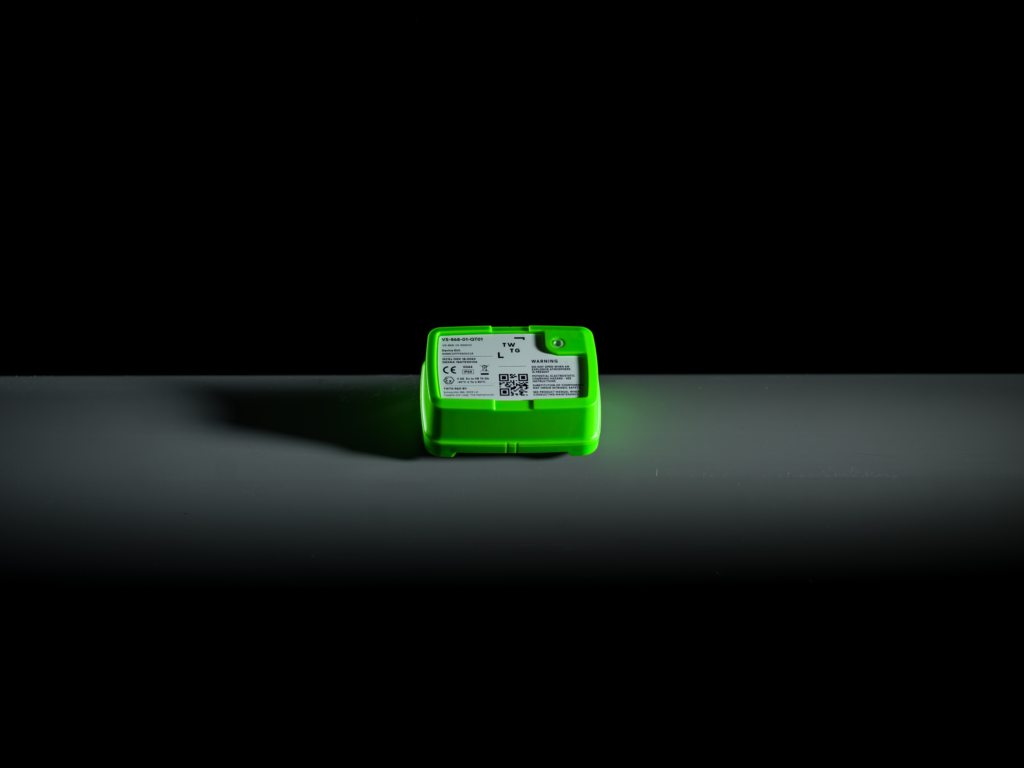

NEON Temperature Sensor

Measures surface temperature and alerts on temperature differences

What makes Industrial IoT truly beneficial, are the valuable new data points it offers whilst monitoring key elements in industrial processes. Especially when easily installed (retrofittable) and provisioned in seconds. This is exactly what TWTG NEON Temperature Sensor does. It provides insight into temperature changes, on almost every industrial asset, instantly. All in the reliable NEON form factor that comes as a battery powered, IECEx Class 1 / ATEX Zone 1 certified1 I-IoT device, communicating wirelessly via LoRaWAN.

TWTG NEON Temperature Sensor can be attached to existing infrastructure and monitors changes in temperature. These insights can positively benefit operations. Currently it is in use at several industrial sites on insulated oil storage terminals and on transportation pipes but the solution can be used in various other scenarios. In oil storage, it monitors the contained product temperature to reach the desired viscosity for easy transportation and to ensure the product properties.

1 IS Class I Div 1, Group C,D T4 – AEx ia IIB T4 Gb // II 2G Ex ia IIB T4 Gb

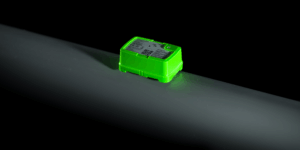

Square NEON Temperature Sensor can used with various mounting methods
NEON Temperature Sensor can used with various mounting methods

IECEx Class 1 / ATEX Zone 1 certified

Designed for industry from the very beginning, TWTG’s NEON product line is built to not only operate in industrial sites where explosive gasses are being handled but also all other elements that a sensor may be exposed to in the course of its 10 year lifetime. It has been tested and certified to work in conditions from -40° to 80° Celsius without hampering performance. The devices are designed and engineered in such a way that they can be safely and securely deployed in a wireless network and are fully remotely configurable, ensuring not only longevity but also reliability within an operation.

Additionally, TWTG delivers spare parts and product lifecycle support. Hence, even at the end of the battery lifetime, the sensor can continue to be used with the correct refurbishment kit. This way, periodical maintenance can be kept at a minimum.

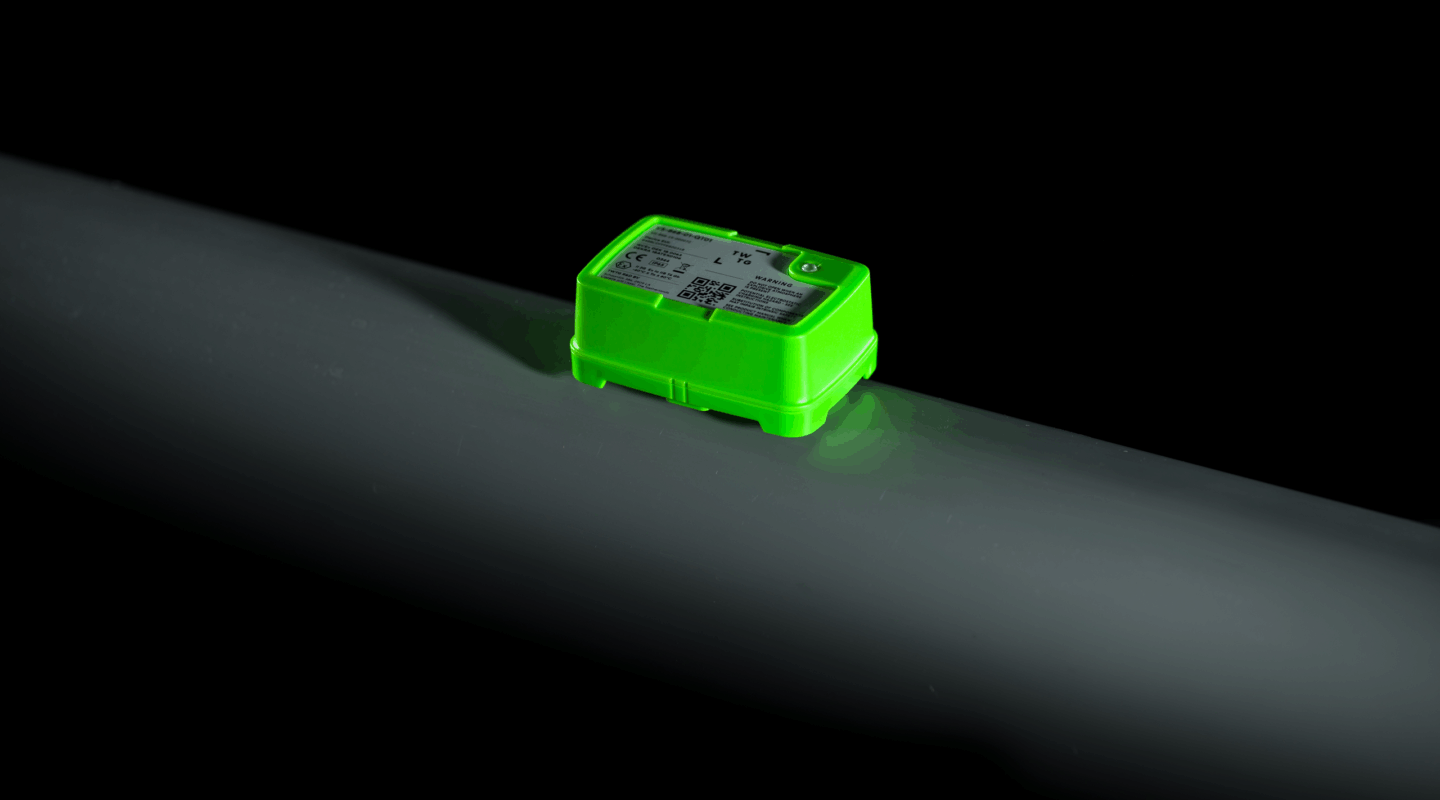

NEON Temperature Sensor can be installed / mounted using various methods ranging from its built-in magnets (for easy placement on ferro metals), to band clamps or a bracket (for specific use cases available).

Alerts for drastic changes in temperature.

NEON Product Line - LoRa devices designed for heavy industry

The TWTG NEON product range supports all industrial customers moving towards LoRaWAN as the Industrial IoT network of the future. The LoRaWAN network gives industrial operations a secure solution, which has no vendor lock-in, scales up to tens of thousands of sensors, covers complete sites with only a small amount of gateways and best of all – the low-power approach means that the lifetime of the NEON products can be extended dramatically. This international networking technology is quickly becoming the industry standard.

NEON stands for a standardised approach to collecting data points from within the operation and a general approach to creating integrated solutions with existing IT ecosystems.

• Fully LoRaWAN compatible
• Based on the highest security standards
• 100% ownership of data
• Delivered with unique provisioning keys
• Deployment via the SolidRed Provisioning App
• IECEx zone 1 / ATEX zone 1 certified
• Battery powered for easy deployment
• Installation within live environments – continuous operation
• Integration with existing data backends or DCS
• Visualisation via TWTG’s SolidRed Suite or any other IoT platform
• Detailed and extensive documentation
• No legacy; compatible with all types of different assets
• Provision of Lifecycle Support
• Availability of spare parts and refurbishment packages

NEON products at Vopak (case-study) Watch video
NEON products at Vopak (case-study)

Technical overview - NEON Temperature Sensor

Sensor
Measures surface temperature

Range
0.5°C (depending on application and installation) – For absolute temperature measurement, insulation of the sensor and the measured object is required

Wireless protocols
LoRaWAN 868, 915 MHz

Dimensions
95 x 64 x 39 mm (L x W x H)

Operating temperature
-40°C to 80°C (-40°F to 176°F)

Certifications
IECEx Class 1 / ATEX Zone 1, IP-65 rated

Lifetime
10 years, up to 5 years battery life

Mounting options
Magnet, band clamp or bracket

(1) IS Class I Div 1, Group C,D T4 – AEx ia IIB T4 Gb

II 2G Ex ia IIB T4 Gb

(2) Compatible with international LoRaWAN standards (long-range, low power wide-area network)
